PS2Tap: Monitoring for Bergey Powersync II

Off Grid Options presents the PS2Tap -APRS World, LLC's powerful and cost effective tool for remotely monitoring the Bergey Excel wind turbine with Powersync II inverter. The PS2Tap installs inside the inverter and wirelessly provides live Internet monitoring of the turbine production and inverter health. Using your always on Internet connection, the PS2Tap makes live and historical conditions available to you through your computer's web browser and our WorldData service. Requires APRS World, LLC's 802.15.4 to Ethernet gateway which is included in this package.

Important: the PS2Tap is compatible only with the Bergey Powersync II Inverter. Approved by Bergey, installation of the PS2Tap will not void the manufacturer's warranty. The PS2Tap is will not work with the Gridtek 10 Inverter.

The PS2Tap Measures

• AC Power (kW) and energy (kWh)
• Grid voltage, current, and frequency
• Inverter mode and faults
• DC voltage and current
• Internal bus voltage

Package Includes

PS2Tap

• PS2Tap module
• Antenna
• 1 m (3 ft) Cable
• Installation supplies:
  • 2 x mounting screws and nuts
  • 4 mm (5/32 in) drill bit
  • Magnet to trap chips
  • 4 x zip ties

802.15.4 Xbee to Ethernet gateway

• RF Modem to Ethernet Gateway, 802.15.4 XBee-PRO
• Antenna, 2.4 GHz, rubber duck, RP-SMA connector
• Power adapter, North American
• CAT5e Ethernet cable, 3 m (10 ft)

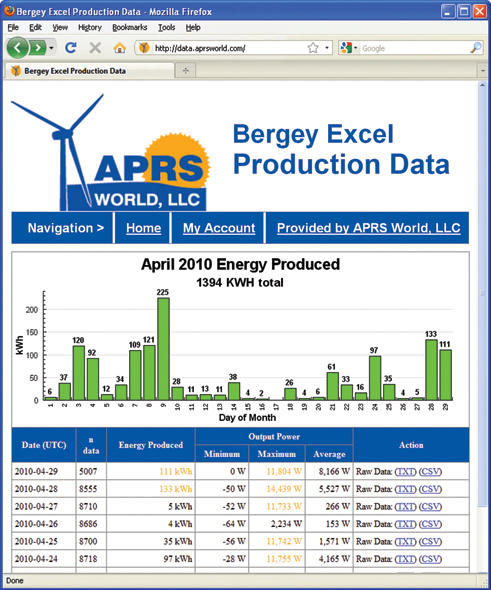

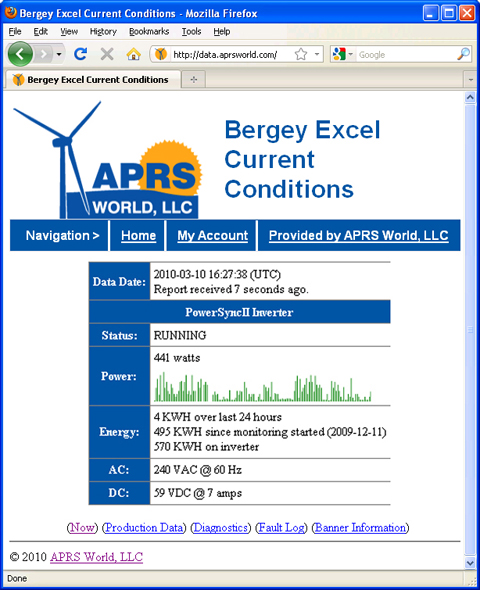

WorldData and Web Display

Through APRS World, LLC, Off Grid Options offers our World Data service for our customers (see pricing above). Using an optional internet gateway module, our products can send live data to our hosted data service. Using your web browser you can view live and historical performance data and graphs. This allows your customer to see how their system is performing and allows you to troubleshoot the system without going on-site.

To see live data examples please click on these links:

• Fremont, Minnesota:
  http://mybergey.aprsworld.com/A2744
• Wapello, Iowa:
  http://mybergey.aprsworld.com/A2269
