Arklay S. Richards Compact High Speed Wind Sensors

Off Grid Options and APRS World are proud to add Arklay S. Richards Compact High Speed Wind Sensors to our product line. Options include both reed switch pulse output and AC frequency output anemometers along with heated sensors and anti-stick coated anemometer rotors. Specifications for each sensor are available when you click the appropriate links. Please note that only the switch pulse output anemometers are compatible with APRS World's Wind Data Logger. These are special order items that may require a two week lead time prior to shipping.

Introduction

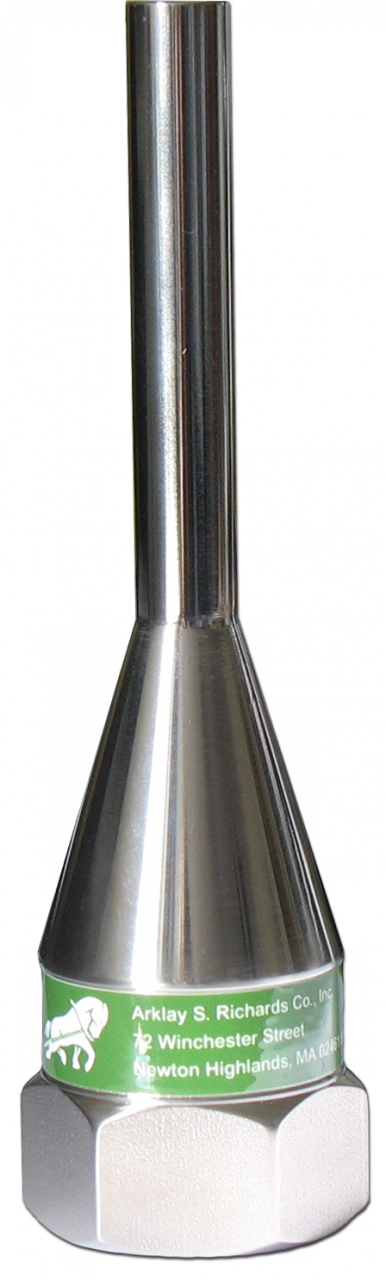

Many applications require only a single anemometer or wind vane mounted on a mast or pole. For this type of application the mast adapter is available. The adapter is machined from solid 316ss bar stock for strength and corrosion resistance. The adapter has a 0.5” O.D. sensor mount on one end and a female 1.0” NPT thread on the other. This allows the use of standard pipe and pipe fittings to install the sensor. The overall length of the mast adapter is 6.0” and the 0.5” O.D. sensor mount section is 3.0”. The outside surfaces are polished to a mirror finish.

Technical Specifications

Materials of Construction and Finish

• One Piece Solid Construction: Solid hex, 316 stainless steel
• 1.0” NPT Female Thread Inside 1.5” hex: 316 stainless steel
• Finish: Bright high polished external finish

Physical Dimensions and Weight

• Sensor Mounting Post Height: 3.0 inches or 76.20 mm
• Mast Adapter Overall Length: 6.0 inches or 152.40 mm
• Weight: 1.05 pounds or 476.27 grams

Tools Required for Mounting and Installation

• Pipe: 1.0” pipe for vertical mast with male thread
• Open End: 1.5” open end wrench or large adjustable wrench
